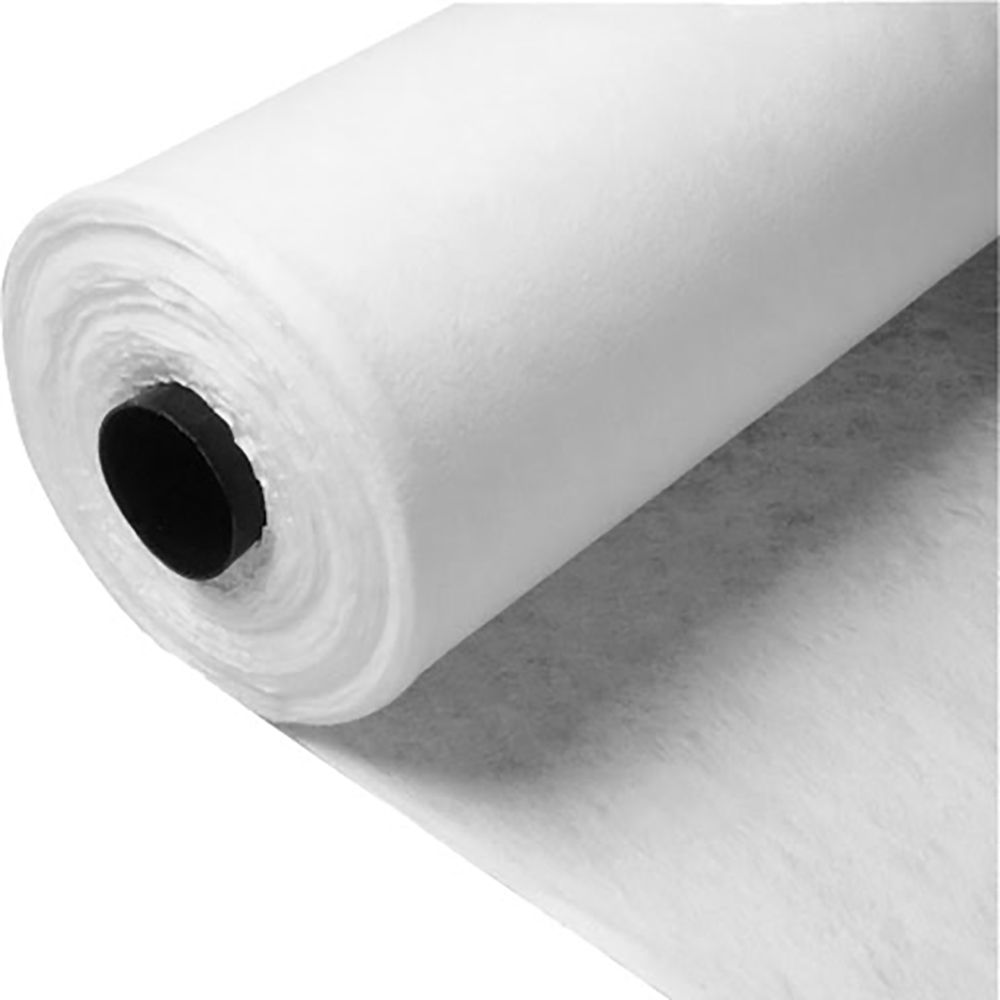

GEOTEXTILE NON-WOVEN 180G/M² 5.25X100M NW15 WHITE

Code	GEO180
Code	GEO180
Reference	3626
Unit	m²
Product model	Geotextile fabric
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Herstal Hoogstraten Oostakker Tielt Zedelgem
Documents	Technical data sheet

Availablility

Technical specifications

(Everything you should know)

Product type	Geotextile fabric
Weight (g/m²)	180g
Width (m)	5,25m
Length (m)	100m
Colour	White
Raw material	Polypropylene
Certificate	BENOR
Tensile strength MD (kN/m)	15
Tensile strength MD (kN/m) norm	EN ISO 10319
Tensile strength CD (kN/m)	15
Tensile strength CD (kN/m) norm	EN ISO 10319
Water vapour permeability (l/m2*sec)	90
Water vapour permeability (l/m2*sec) norm	EN ISO 11058
Elongation at max. load CD (%)	55
Elongation at max. load CD (%) norm	EN ISO 10319

Elongation at max. load MD (%)	50
Elongation at max. load MD (%) norm	EN ISO 10319
Weight (g/m²) norm	EN ISO 9864
Static perforation resistance CBR (N)	2500
Static perforation resistance CBR (N) norm	EN ISO 12236
Resistance to dynamic perforation (mm)	20
Resistance to dynamic perforation (mm) norm	EN ISO 13433
Mesh size (µm)	90
Mesh size (µm) norm	EN ISO 12956
Water flow in plane at 20 kPa (m²/s)	3x10-7
Water flow in plane at 20 kPa (m²/s) rating	EN ISO 12958
Thickness at 2 kPa (mm)	1,25mm
Thickness at 2 kPa (mm) norm	EN ISO 9863-1
Density (kg/dm³)	0,91
Melting point (°C)	165

Product type	Geotextile fabric
Weight (g/m²)	180g
Width (m)	5,25m
Length (m)	100m
Colour	White
Raw material	Polypropylene
Certificate	BENOR
Tensile strength MD (kN/m)	15
Tensile strength MD (kN/m) norm	EN ISO 10319
Tensile strength CD (kN/m)	15
Tensile strength CD (kN/m) norm	EN ISO 10319
Water vapour permeability (l/m2*sec)	90
Water vapour permeability (l/m2*sec) norm	EN ISO 11058
Elongation at max. load CD (%)	55
Elongation at max. load CD (%) norm	EN ISO 10319
Elongation at max. load MD (%)	50
Elongation at max. load MD (%) norm	EN ISO 10319
Weight (g/m²) norm	EN ISO 9864
Static perforation resistance CBR (N)	2500
Static perforation resistance CBR (N) norm	EN ISO 12236
Resistance to dynamic perforation (mm)	20
Resistance to dynamic perforation (mm) norm	EN ISO 13433
Mesh size (µm)	90
Mesh size (µm) norm	EN ISO 12956
Water flow in plane at 20 kPa (m²/s)	3x10-7
Water flow in plane at 20 kPa (m²/s) rating	EN ISO 12958
Thickness at 2 kPa (mm)	1,25mm
Thickness at 2 kPa (mm) norm	EN ISO 9863-1
Density (kg/dm³)	0,91
Melting point (°C)	165
