L&S COVER 80 PRO 500X 500MM H=80MM

L&S COVER 80 PRO 500X 500MM H=80MM

Code LS80PRO050
Code LS80PRO050
Brand LSDRAIN
Reference 19
Unit pieces
Product model Clinker lid aluminium
Collection Pro Line
Availablility

Availablility

  • Oostakker
Description

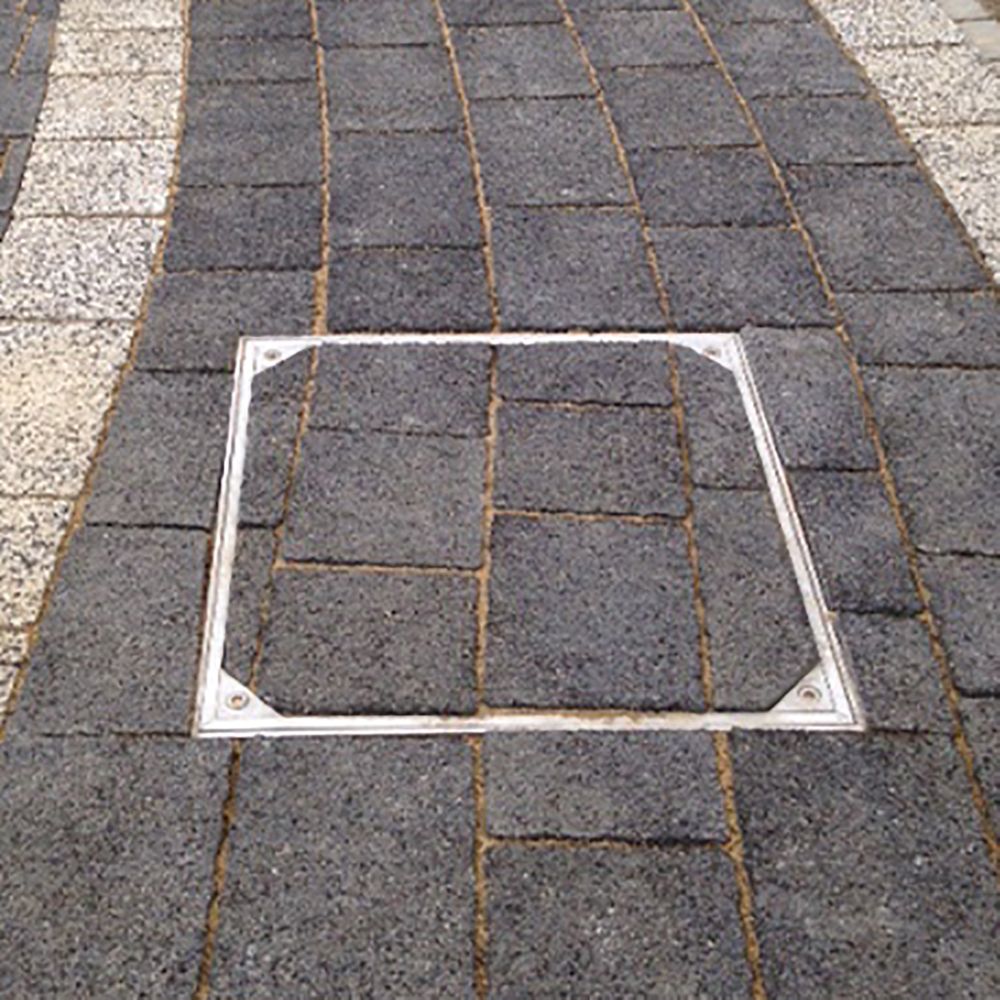

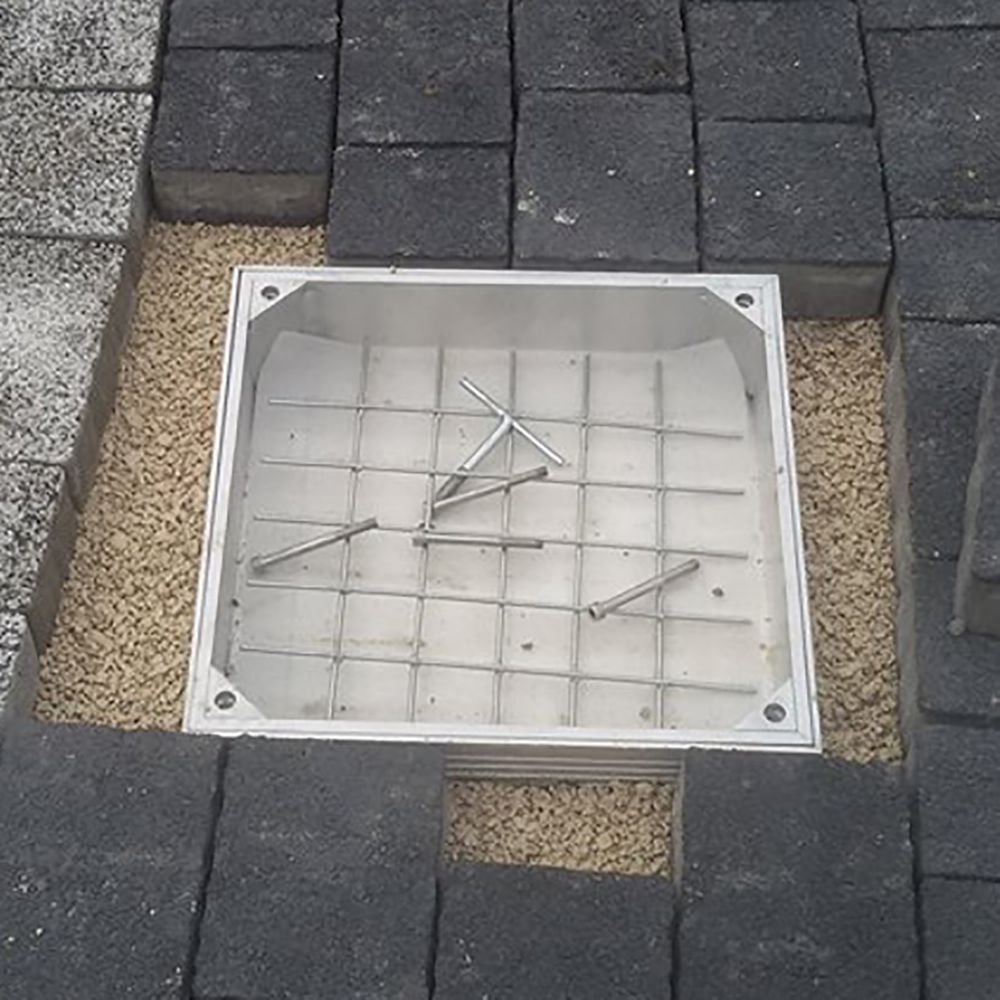

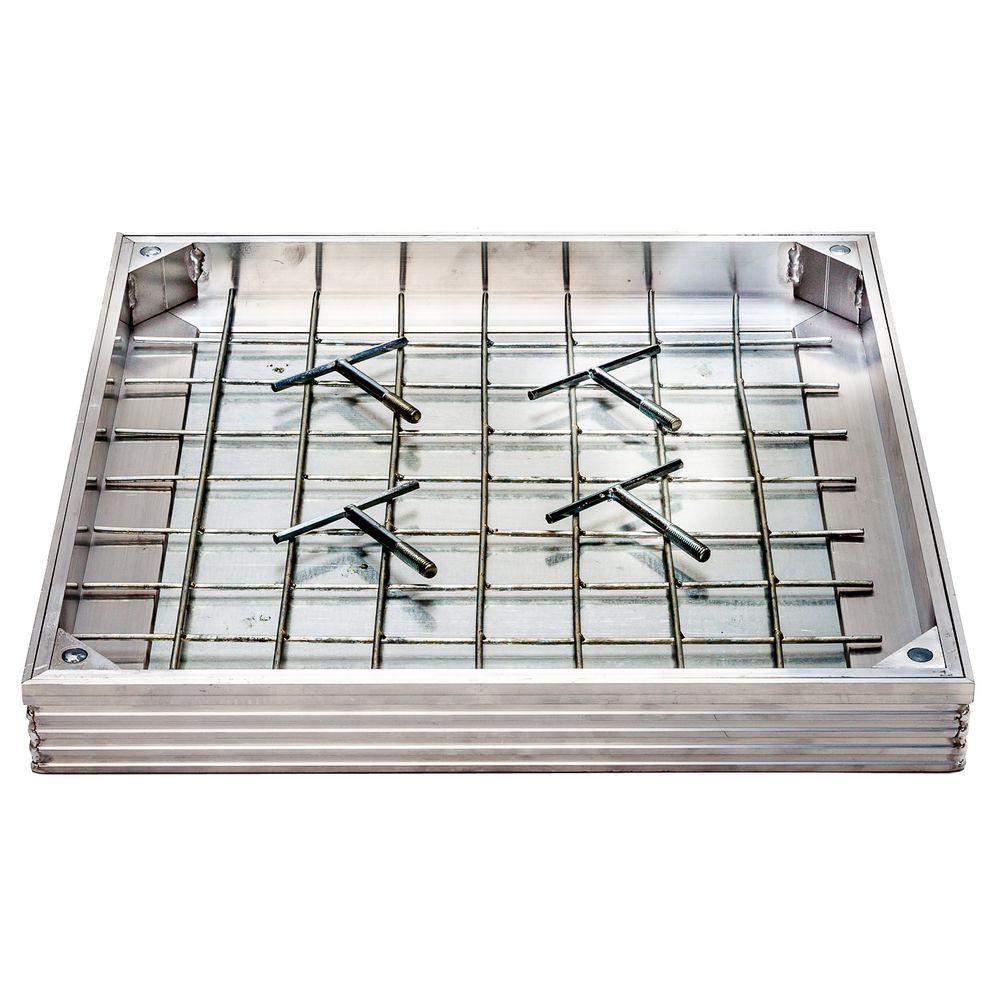

Tile and paving lid made of extruded aluminium. The lid is fixed with screws. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Three seals: two on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description
Documents

Availablility

  • Oostakker

Tile and paving lid made of extruded aluminium. The lid is fixed with screws. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Three seals: two on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

Tile and paving lid made of extruded aluminium.

  • The lid is fixed with screws.
  • Equipped with a reinforcement mesh.
  • 3 mm galvanised steel plate as base plate.
  • Three seals: two on the bottom and one on the side of the outer frame.
  • T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Technical specifications

(Everything you should know)
Product type Clinker lid aluminium
Collection Pro Line
Width (mm) 500mm
Height (mm) 80mm
Load class A15
Shape Square
Raw material Aluminium
Opening length (mm) 410mm
Length (mm) 500mm
Opening width (mm) 410mm
Lid properties Clinker lid, Tile cover
Weight (kg) 10,37kg
Product type Clinker lid aluminium
Collection Pro Line
Width (mm) 500mm
Height (mm) 80mm
Load class A15
Shape Square
Raw material Aluminium
Opening length (mm) 410mm
Length (mm) 500mm
Opening width (mm) 410mm
Lid properties Clinker lid, Tile cover
Weight (kg) 10,37kg
