L&S EUROMASTER ALU B125 100MM 600X 600MM

L&S EUROMASTER ALU B125 100MM 600X 600MM

Code LSEM100060
Code LSEM100060
Brand LSDRAIN
Reference 26448
Unit pieces
Product model Clinker lid aluminium
Collection Euromaster B125
Availablility

Availablility

  • Hasselt
  • Herent
  • Herstal
  • Oostakker
  • Tielt
  • Zedelgem
Description

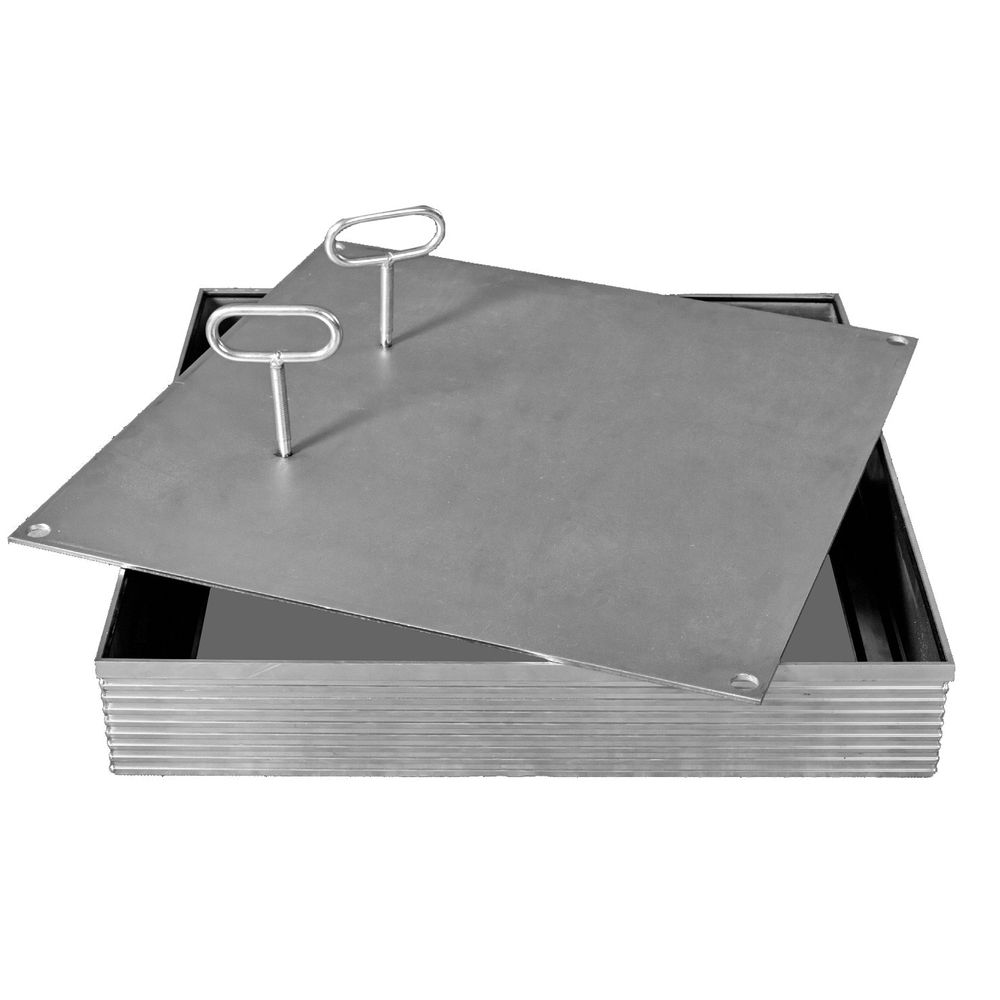

Tile and paving lid made of extruded aluminium. The lid is fixed with screws. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Removable double bottom (6 mm galvanised steel plate) guarantees load class B125. Three seals: two on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description
Documents

Availablility

  • Hasselt
  • Herent
  • Herstal
  • Oostakker
  • Tielt
  • Zedelgem

Tile and paving lid made of extruded aluminium. The lid is fixed with screws. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Removable double bottom (6 mm galvanised steel plate) guarantees load class B125. Three seals: two on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

Tile and paving lid made of extruded aluminium.

  • The lid is fixed with screws.
  • Equipped with a reinforcement mesh.
  • 3 mm galvanised steel plate as base plate.
  • Removable double bottom (6 mm galvanised steel plate) guarantees load class B125.
  • Three seals: two on the bottom and one on the side of the outer frame.
  • T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Pros and cons

(According to our consultants)

Easy to open using lifting keys.

Technical specifications

(Everything you should know)
Product type Clinker lid aluminium
Collection Euromaster B125
Width (mm) 600mm
Height (mm) 100mm
Load class B125
Shape Square
Raw material Aluminium
Opening length (mm) 510mm
Length (mm) 600mm
Opening width (mm) 510mm
Lid properties Clinker lid, Tile cover
Weight (kg) 37,12kg
Product type Clinker lid aluminium
Collection Euromaster B125
Width (mm) 600mm
Height (mm) 100mm
Load class B125
Shape Square
Raw material Aluminium
Opening length (mm) 510mm
Length (mm) 600mm
Opening width (mm) 510mm
Lid properties Clinker lid, Tile cover
Weight (kg) 37,12kg
