L&S EUROMASTER ALU B125 100MM 700X 700MM

L&S EUROMASTER ALU B125 100MM 700X 700MM

Code LSEM100070
Code LSEM100070
Brand LSDRAIN
Reference 26449
Unit pieces
Product model Clinker lid aluminium
Collection Euromaster B125
Availablility

Availablility

  • Hasselt
  • Herent
  • Herstal
  • Oostakker
  • Tielt
Description

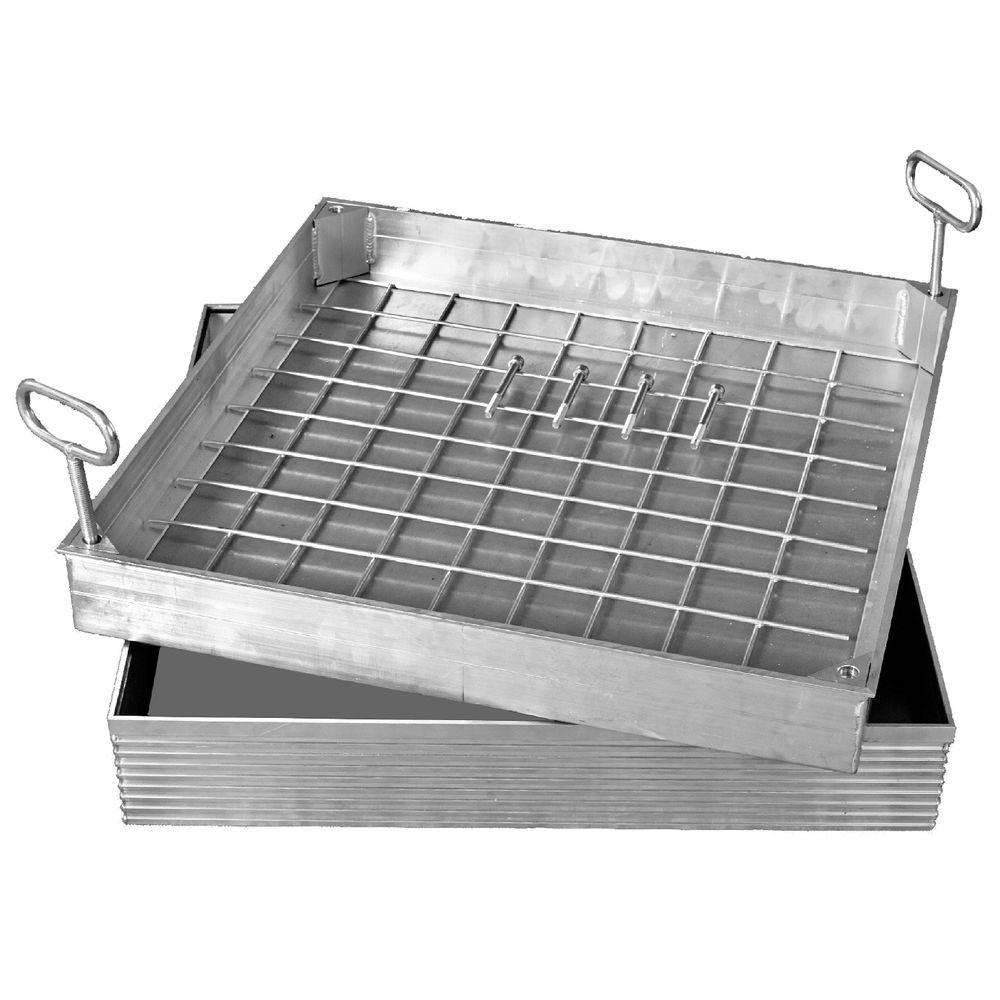

Tile and paving lid made of extruded aluminium. The lid is fixed with screws. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Removable double bottom (6 mm galvanised steel plate) guarantees load class B125. Three seals: two on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description
Documents

Availablility

  • Hasselt
  • Herent
  • Herstal
  • Oostakker
  • Tielt

Tile and paving lid made of extruded aluminium. The lid is fixed with screws. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Removable double bottom (6 mm galvanised steel plate) guarantees load class B125. Three seals: two on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

Tile and paving lid made of extruded aluminium.

  • The lid is fixed with screws.
  • Equipped with a reinforcement mesh.
  • 3 mm galvanised steel plate as base plate.
  • Removable double bottom (6 mm galvanised steel plate) guarantees load class B125.
  • Three seals: two on the bottom and one on the side of the outer frame.
  • T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Pros and cons

(According to our consultants)

Easy to open using lifting keys.

Technical specifications

(Everything you should know)
Product type Clinker lid aluminium
Collection Euromaster B125
Width (mm) 700mm
Height (mm) 100mm
Load class B125
Shape Square
Raw material Aluminium
Opening length (mm) 610mm
Length (mm) 700mm
Opening width (mm) 610mm
Lid properties Clinker lid, Tile cover
Weight (kg) 48,66kg
Product type Clinker lid aluminium
Collection Euromaster B125
Width (mm) 700mm
Height (mm) 100mm
Load class B125
Shape Square
Raw material Aluminium
Opening length (mm) 610mm
Length (mm) 700mm
Opening width (mm) 610mm
Lid properties Clinker lid, Tile cover
Weight (kg) 48,66kg
