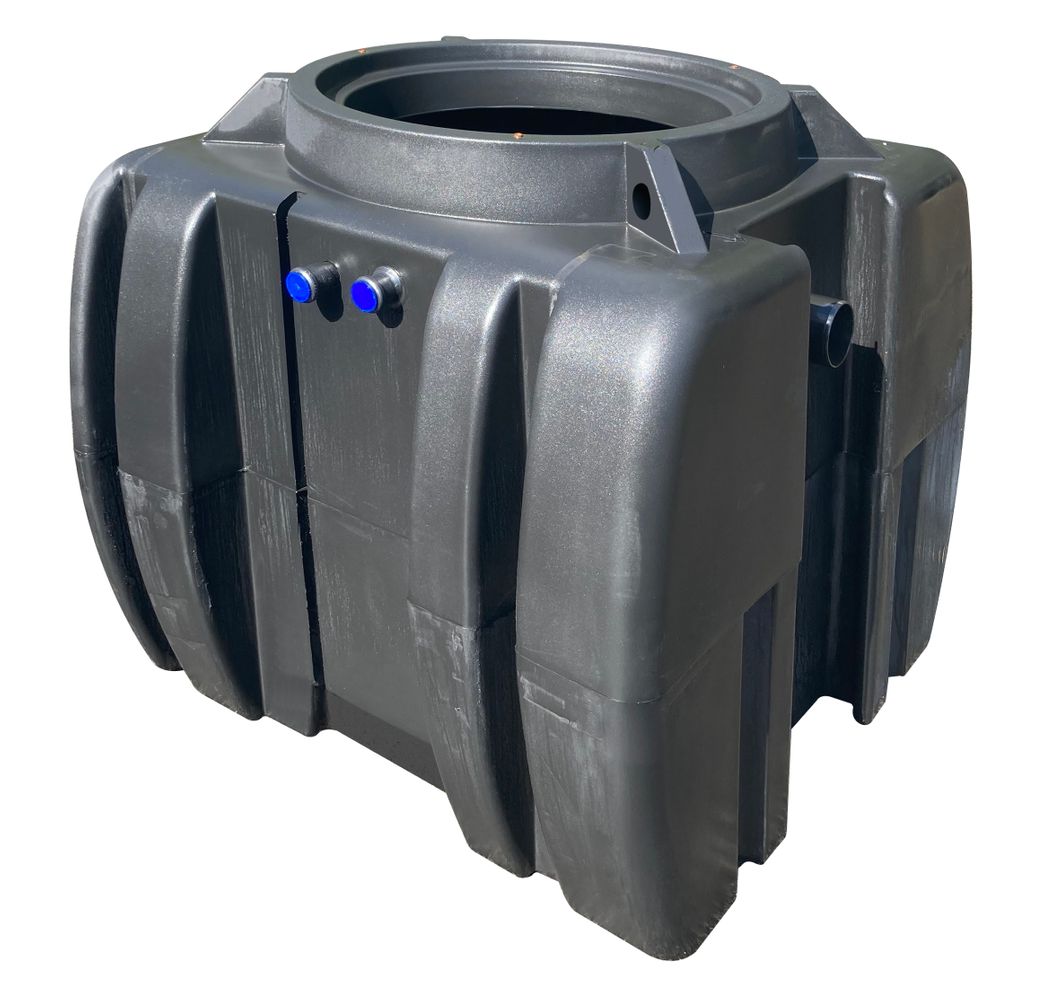

OIL SEPARATOR PE-COAL SLUDGE SEPARATOR (E) 3L/S
OIL SEPARATOR PE-COAL SLUDGE SEPARATOR (E) 3L/S
| Code | H.SKPE03/300E |
| Code | H.SKPE03/300E |
| Brand | Collinet |
| Reference | 14119 |
| Unit | pieces |
| Product model | Oil separator |
| Availablility |
Availablility
|
Availablility
-
Hasselt
-
Herent
-
Oostakker
-
Tielt
Become a professional online customer
- ✓ Access to your net prices
- ✓Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Technical specifications
(Everything you should know)| Product type | Oil separator |
| Raw material | PE |
| Total flow rate (l/s) | 3 |
| Number of manholes | 1 |
| Effective separator volume (l) | 700 |
| Hydrocarbon storage (l) | 223 |
| Sludge trap volume (l) | 300 |
| Built-in sampling point | yes |
| Coalescence filter | yes |
| Treated flow rate (l/s) | 3 |
| Width (mm) | 1270mm |
| Weight (kg) | 106kg |
| Cable duct alarm (mm) | 40 |
| Ventilation connection (mm) | 40 |

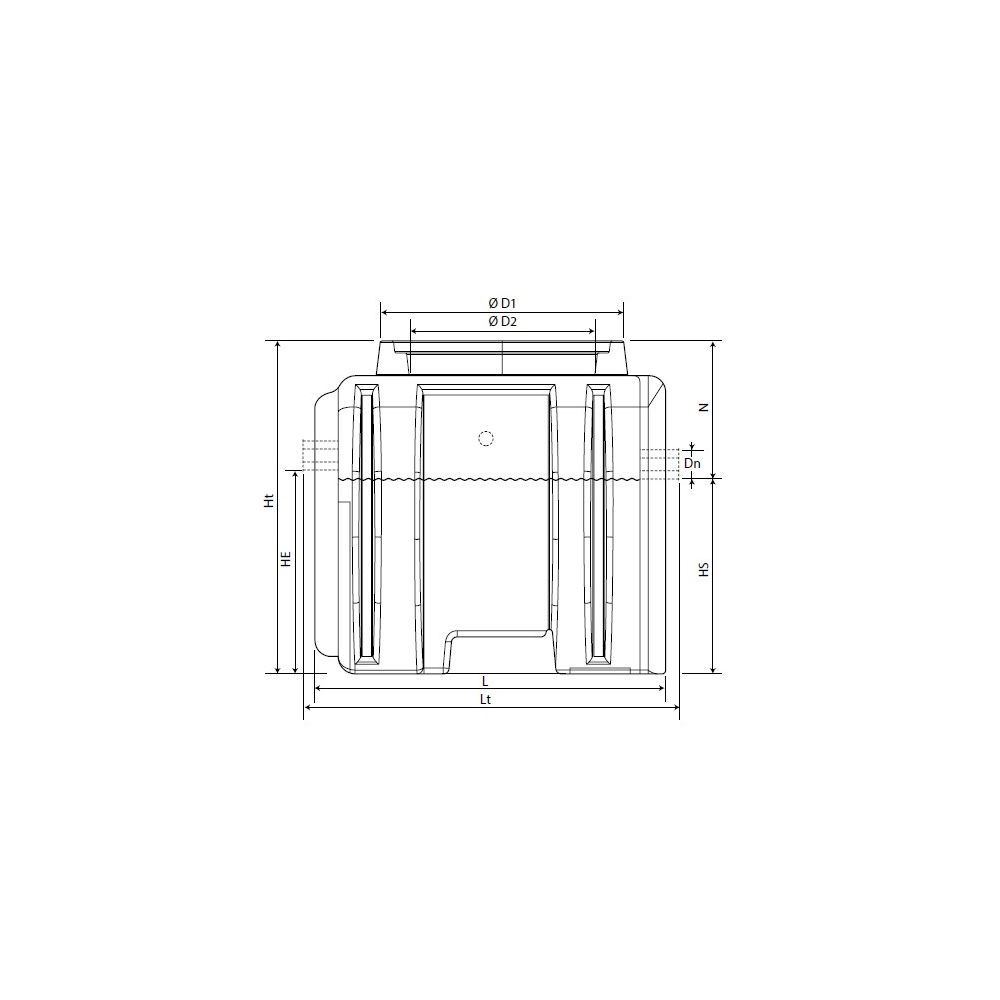

| Inlet height 'HE' (mm) | 804mm |
| Outlet height 'HS' (mm) | 774mm |
| N (mm) | 378mm |
| Clear opening manhole 'D2' (mm) | 630mm |
| Height 'HT' (mm) | 1152mm |
| Connection diameter inlet (mm) | 110 |
| Connection diameter outlet (mm) | 110 |
| Length 'L' (mm) | 1221mm |
