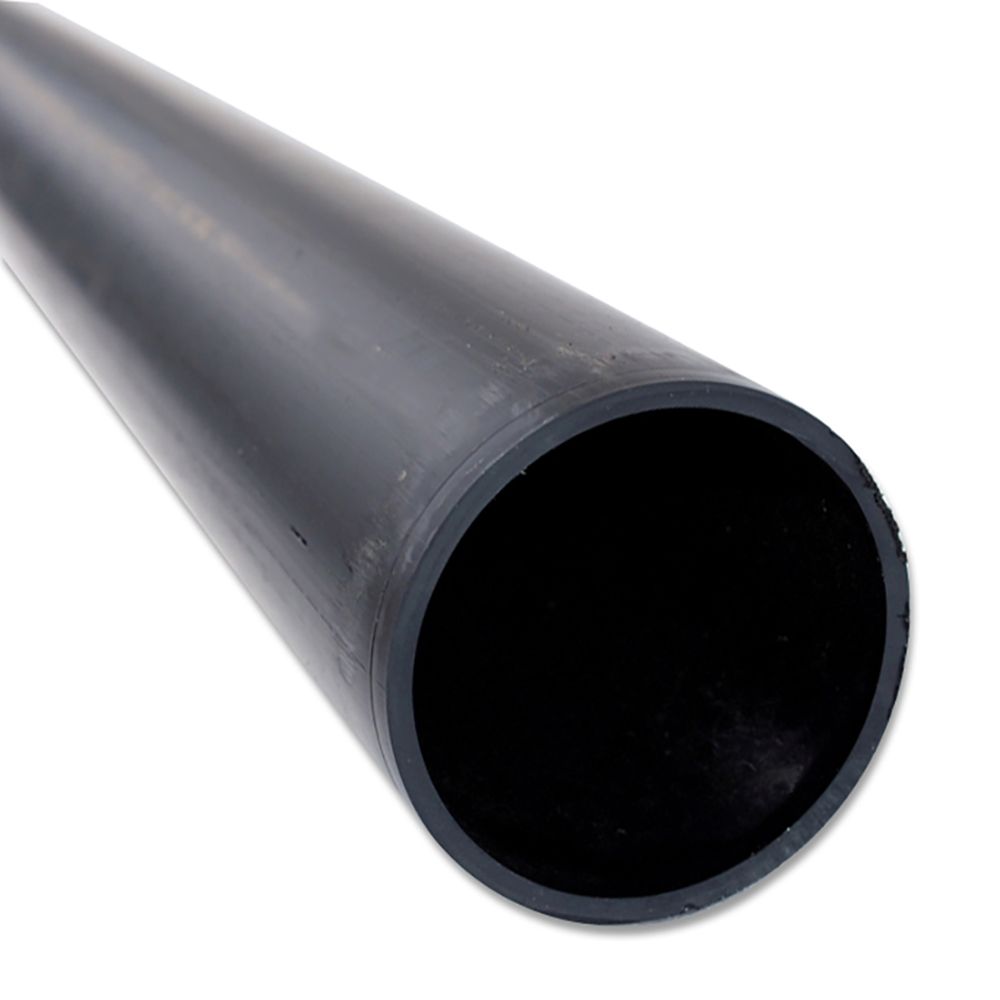

PE SEWAGE PIPE EN12666-1 160X6.2MM S12.5 6M
PE SEWAGE PIPE EN12666-1 160X6.2MM S12.5 6M
| Code | PEA160S125 |
| Code | PEA160S125 |
| Reference | 12316 |
| Unit | meter |
| Product model | Drain pipe PE |
| Availablility |
Availablility
|
| Description |
The drainage pipes are made of High-Density Polyethylene (HDPE). The HDPE drainage pipes comply with NBN EN 12666-1, class S12.5 / PN4. Black pipes are supplied in 6-metre lengths; other dimensions are available on request. |
| Documents |
Availablility
-
Farciennes
-
Hamme
-
Herstal
The drainage pipes are made of High-Density Polyethylene (HDPE). The HDPE drainage pipes comply with NBN EN 12666-1, class S12.5 / PN4. Black pipes are supplied in 6-metre lengths; other dimensions are available on request.
- ✓ Access to your net prices
- ✓Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)The drainage pipes are made of High-Density Polyethylene (HDPE). The HDPE drainage pipes comply with NBN EN 12666-1, class S12.5 / PN4. Black pipes are supplied in 6-metre lengths; other dimensions are available on request.
Technical specifications
(Everything you should know)| Product type | Drain pipe PE |
| Diameter Ø (mm) | 160mm |
| Pressure (bar) | PN4 |
| Length (m) | 6m |
| Raw material | HDPE |
| Colour | Black |
| Pipe wall | Solid wall |
| Certificate norm | EN 12666-1 |
| Wall thickness (mm) | 6,2mm |
| Ring stiffness | SN4 |
| Density (kg/m³) | ≥ 930 km/m³ |
| Density norm | EN ISO 1183 |
| Melt Flow Rate - 190°C / 5 kg | 0.2 : 1.4 g/10 min |
| Oxidation induction time at 200 °C | ≥ 20' |
| Melt flow rate - 190°C / 5 kg rating | EN ISO 1133 |
| Oxidation induction time at 200 °C rating | EN 728 |
| Resistance to hydraulic pressure at 80 °C / σ 2.8 MPa | ≥ 1000 h |
| Resistance to hydraulic pressure at 80 °C / σ 2.8 Mpa norm | EN 921 |
| Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa | ≥ 165 h |
| Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa norm | EN 921 |
| Ring stiffness deflection at 3% / 23 ±2 °C | ≥ 4 kN/m² |
| Ring stiffness deviation 3 % / 23 ±2 °C rating | EN ISO 9969 |
| Product type | Drain pipe PE |
| Diameter Ø (mm) | 160mm |
| Pressure (bar) | PN4 |
| Length (m) | 6m |
| Raw material | HDPE |
| Colour | Black |
| Pipe wall | Solid wall |
| Certificate norm | EN 12666-1 |
| Wall thickness (mm) | 6,2mm |
| Ring stiffness | SN4 |
| Density (kg/m³) | ≥ 930 km/m³ |
| Density norm | EN ISO 1183 |
| Melt Flow Rate - 190°C / 5 kg | 0.2 : 1.4 g/10 min |
| Oxidation induction time at 200 °C | ≥ 20' |
| Melt flow rate - 190°C / 5 kg rating | EN ISO 1133 |
| Oxidation induction time at 200 °C rating | EN 728 |
| Resistance to hydraulic pressure at 80 °C / σ 2.8 MPa | ≥ 1000 h |
| Resistance to hydraulic pressure at 80 °C / σ 2.8 Mpa norm | EN 921 |
| Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa | ≥ 165 h |
| Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa norm | EN 921 |
| Ring stiffness deflection at 3% / 23 ±2 °C | ≥ 4 kN/m² |
| Ring stiffness deviation 3 % / 23 ±2 °C rating | EN ISO 9969 |
