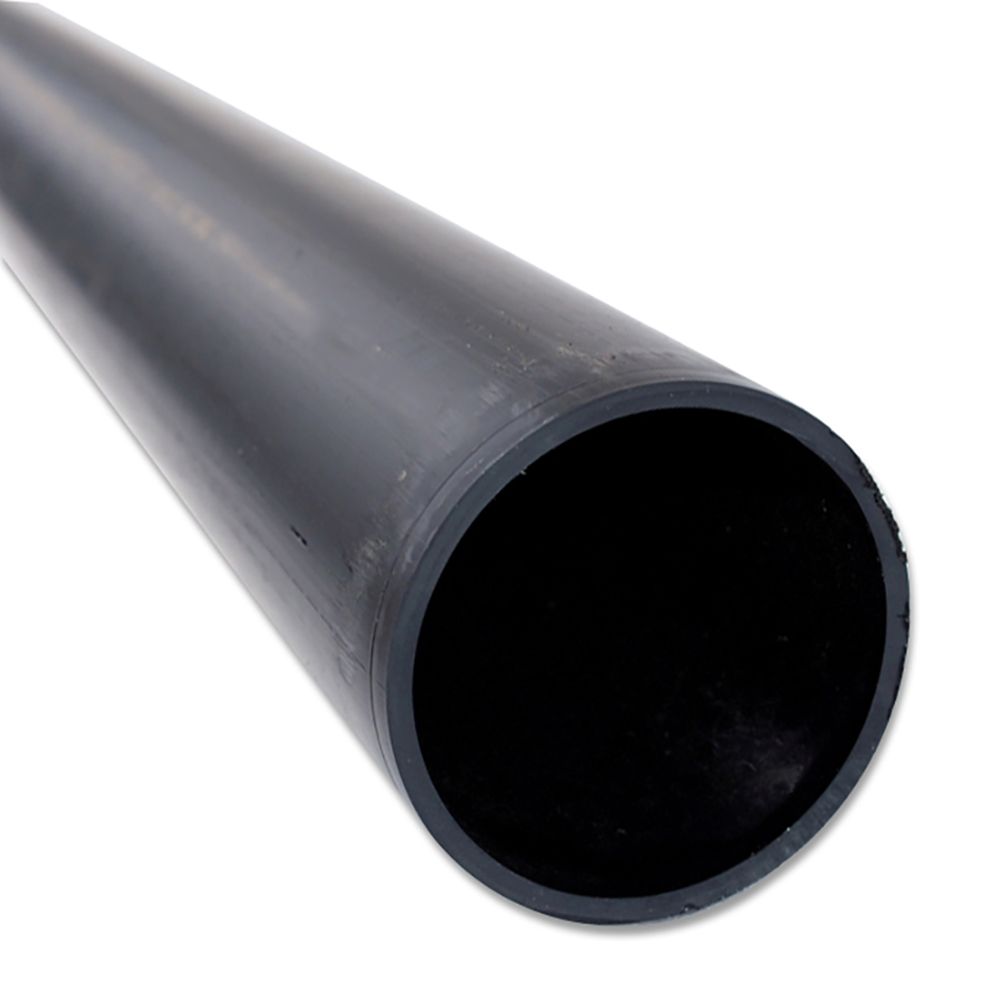

PE SEWAGE PIPE EN12666-1 400X12.4MM S16 6M

Code	PEA400S16
Code	PEA400S16
Reference	8408
Unit	meter
Product model	Drain pipe PE
Availablility	Availablility Farciennes Hamme Herstal
Documents	Technical data sheet

Availablility

Technical specifications

(Everything you should know)

Density norm	EN ISO 1183
Melt Flow Rate - 190°C / 5 kg	0.2 : 1.4 g/10 min
Oxidation induction time at 200 °C	≥ 20'
Melt flow rate - 190°C / 5 kg rating	EN ISO 1133
Oxidation induction time at 200 °C rating	EN 728
Resistance to hydraulic pressure at 80 °C / σ 2.8 MPa	≥ 1000 h
Resistance to hydraulic pressure at 80 °C / σ 2.8 Mpa norm	EN 921
Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa	≥ 165 h
Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa norm	EN 921
Ring stiffness deflection at 3% / 23 ±2 °C	≥ 2 kN/m²
Ring stiffness deviation 3 % / 23 ±2 °C rating	EN ISO 9969

Product type	Drain pipe PE
Diameter Ø (mm)	400mm
Pressure (bar)	PN3.2
Length (m)	6m
Raw material	HDPE
Colour	Black
Pipe wall	Solid wall
SDR value	S16
Certificate norm	EN 12666-1
Wall thickness (mm)	12,4mm
Ring stiffness	SN2
Density (kg/m³)	≥ 930 km/m³
Density norm	EN ISO 1183
Melt Flow Rate - 190°C / 5 kg	0.2 : 1.4 g/10 min
Oxidation induction time at 200 °C	≥ 20'
Melt flow rate - 190°C / 5 kg rating	EN ISO 1133
Oxidation induction time at 200 °C rating	EN 728
Resistance to hydraulic pressure at 80 °C / σ 2.8 MPa	≥ 1000 h
Resistance to hydraulic pressure at 80 °C / σ 2.8 Mpa norm	EN 921
Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa	≥ 165 h
Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa norm	EN 921
Ring stiffness deflection at 3% / 23 ±2 °C	≥ 2 kN/m²
Ring stiffness deviation 3 % / 23 ±2 °C rating	EN ISO 9969
