PP RIBWALL IT-SEWER BENOR Ø1000 SN8 BARE L6M BLACK
PP RIBWALL IT-SEWER BENOR Ø1000 SN8 BARE L6M BLACK
| Code | ITR1000 |
| Code | ITR1000 |
| Reference | 19855 |
| Unit | meter |
| Product model | Bare pipe PP ribwall |
| Collection | Ribwall |
| Availablility |
Availablility
|
| Description |

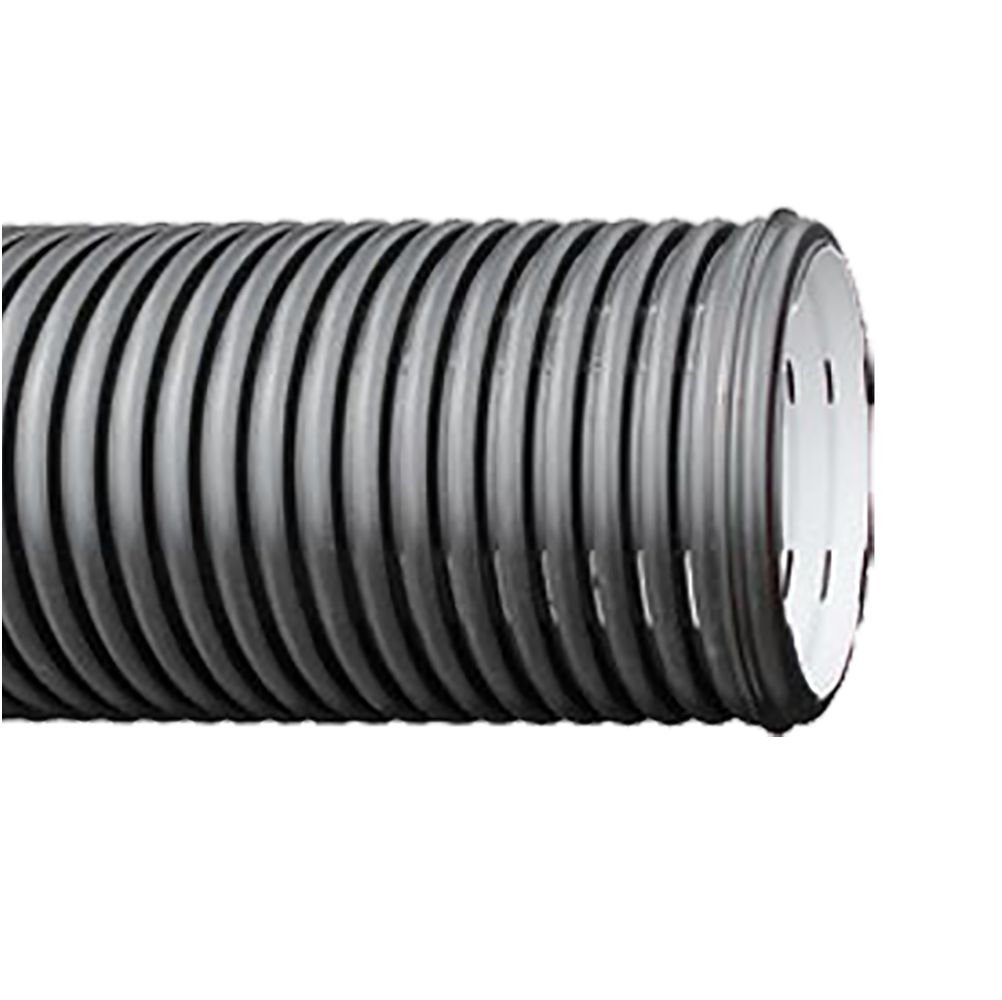

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180. |
| Documents |
Availablility
-
Geel
-
Tielt
The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Accessories
(Selected for you)
Product information
(Well informed)Description
(In detail)The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter.
The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black.
Material: SBR sealing ring.

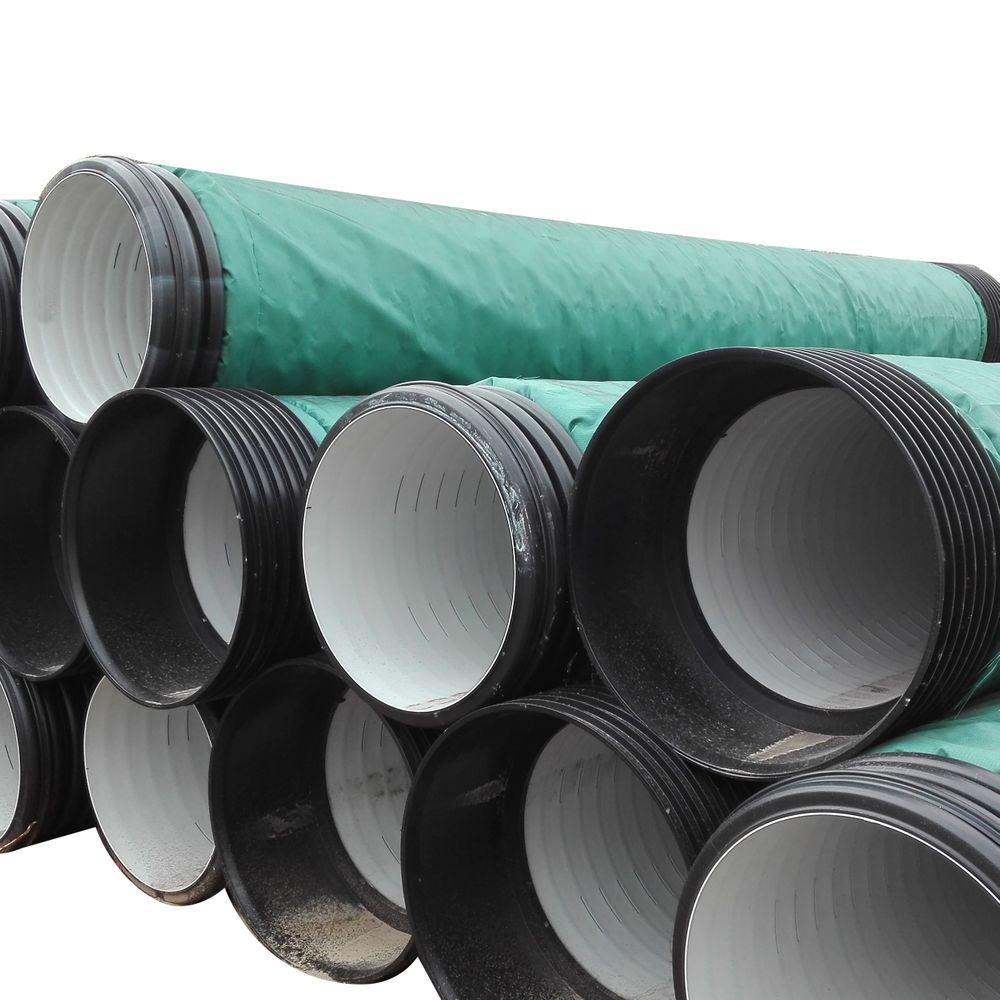

The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.
Technical specifications
(Everything you should know)| Product type | Bare pipe PP ribwall |
| DN (mm) | 1000mm |
| Length (m) | 6m |
| Certificate | BENOR |
| Colour | Black |
| Raw material | PP |
| Pipe wall | Ribbed |
| Collection | Ribwall |
| Certificate norm | NBN T-42-115 |
| Ring stiffness commercial | SN8 |
| Weight (kg) | 324,4kg |

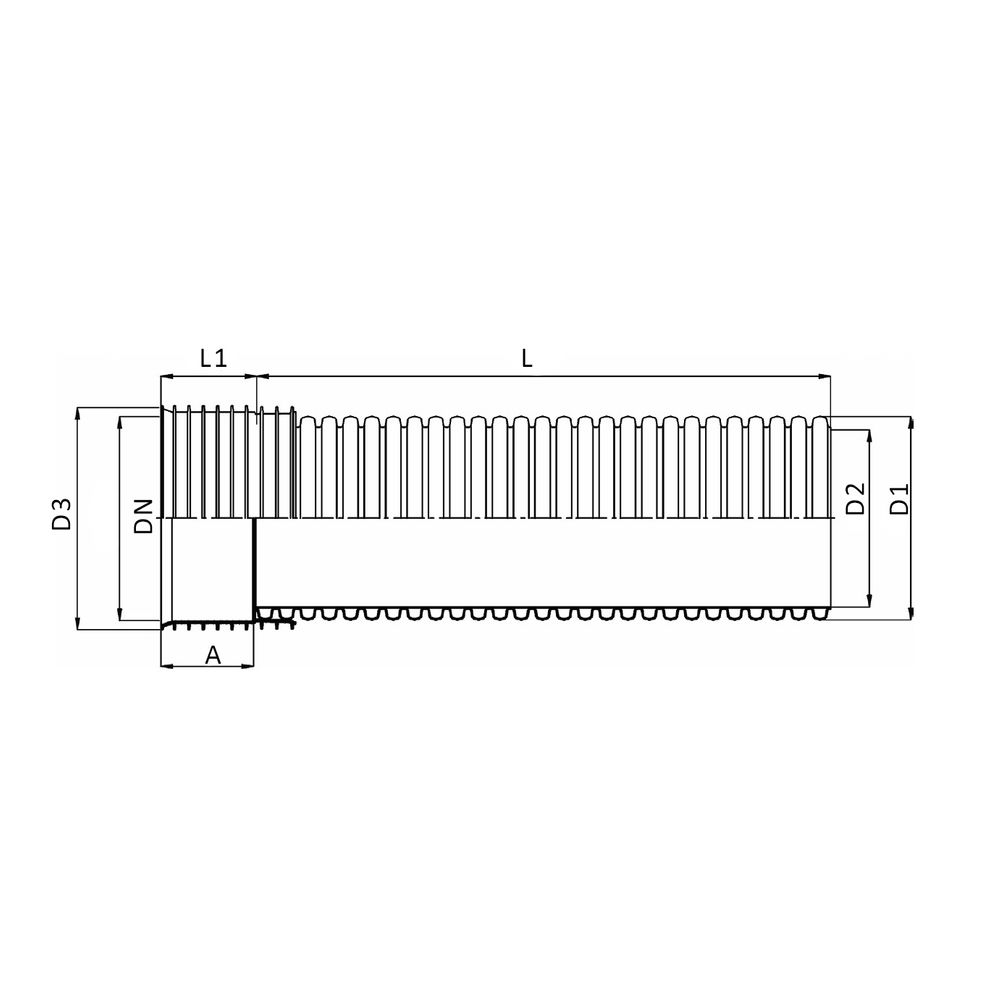

| D1 (mm) | 1135 |
| D2 (mm) | 990 |
| D3 (mm) | 1212 |
| A (mm) | 456mm |
| L1 (mm) | 480mm |
| Volume (l/m) | 769,4l |
| Weight (kg/m) | 49,6kg |
| Side infiltration area (m²/m) | 1,78 |
| Product type | Bare pipe PP ribwall |
| DN (mm) | 1000mm |
| Length (m) | 6m |
| Certificate | BENOR |
| Colour | Black |
| Raw material | PP |
| Pipe wall | Ribbed |
| Collection | Ribwall |
| Certificate norm | NBN T-42-115 |
| Ring stiffness commercial | SN8 |
| Weight (kg) | 324,4kg |
| D1 (mm) | 1135 |
| D2 (mm) | 990 |
| D3 (mm) | 1212 |
| A (mm) | 456mm |
| L1 (mm) | 480mm |
| Volume (l/m) | 769,4l |
| Weight (kg/m) | 49,6kg |
| Side infiltration area (m²/m) | 1,78 |
