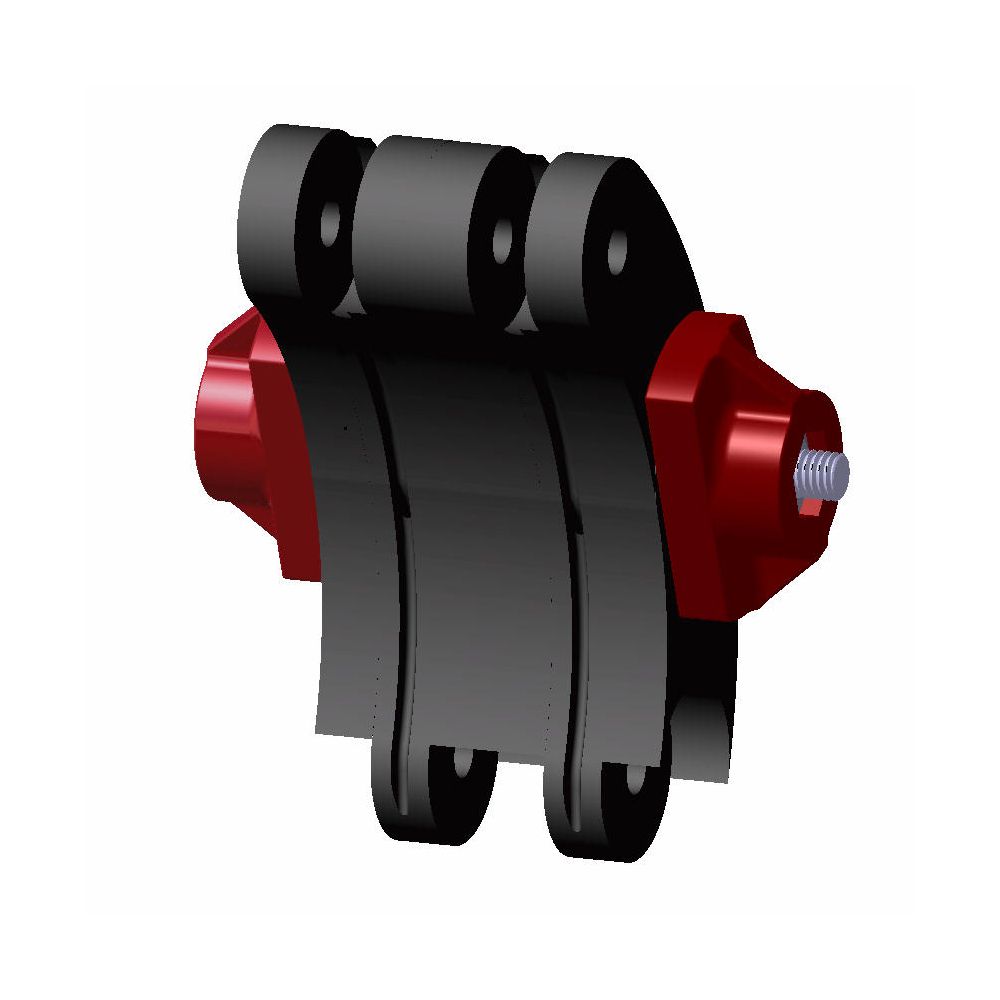

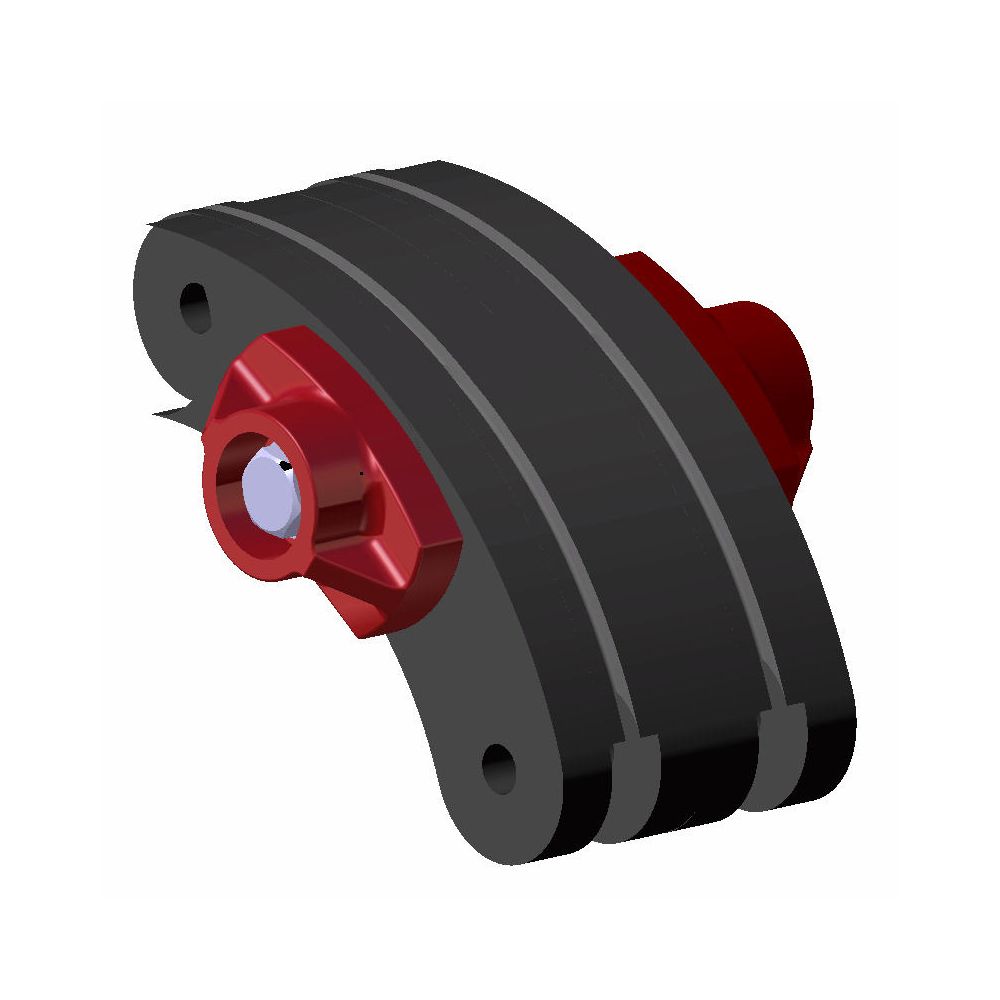

RING SEAL LINK LU-GT 200 0.5MPA EPDM/INOX BLACK
RING SEAL LINK LU-GT 200 0.5MPA EPDM/INOX BLACK
| Code | RING20005 |
| Code | RING20005 |
| Brand | DDL |
| Reference | 29028 |
| Unit | pieces |
| Product model | Seal EPDM / stainless steel |
| Collection | Ring-Seal |
| Availablility |
Availablility |
Availablility
Become a professional online customer
- ✓ Access to your net prices
- ✓Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Technical specifications
(Everything you should know)| Product type | Seal EPDM / stainless steel |
| Min. range diameter Ø (mm) | 21,3mm |
| Max. range diameter Ø (mm) | 323,9mm |
| Raw material | EPDM-stainless steel |
| Collection | Ring-Seal |
| Installation depth (mm) | 70mm |
| Max. torque (Nm) | 3Nm |
| Annular gap (mm) | 12,5 - 17,0mm |
| Product type | Seal EPDM / stainless steel |
| Min. range diameter Ø (mm) | 21,3mm |
| Max. range diameter Ø (mm) | 323,9mm |
| Raw material | EPDM-stainless steel |
| Collection | Ring-Seal |
| Installation depth (mm) | 70mm |
| Max. torque (Nm) | 3Nm |
| Annular gap (mm) | 12,5 - 17,0mm |
