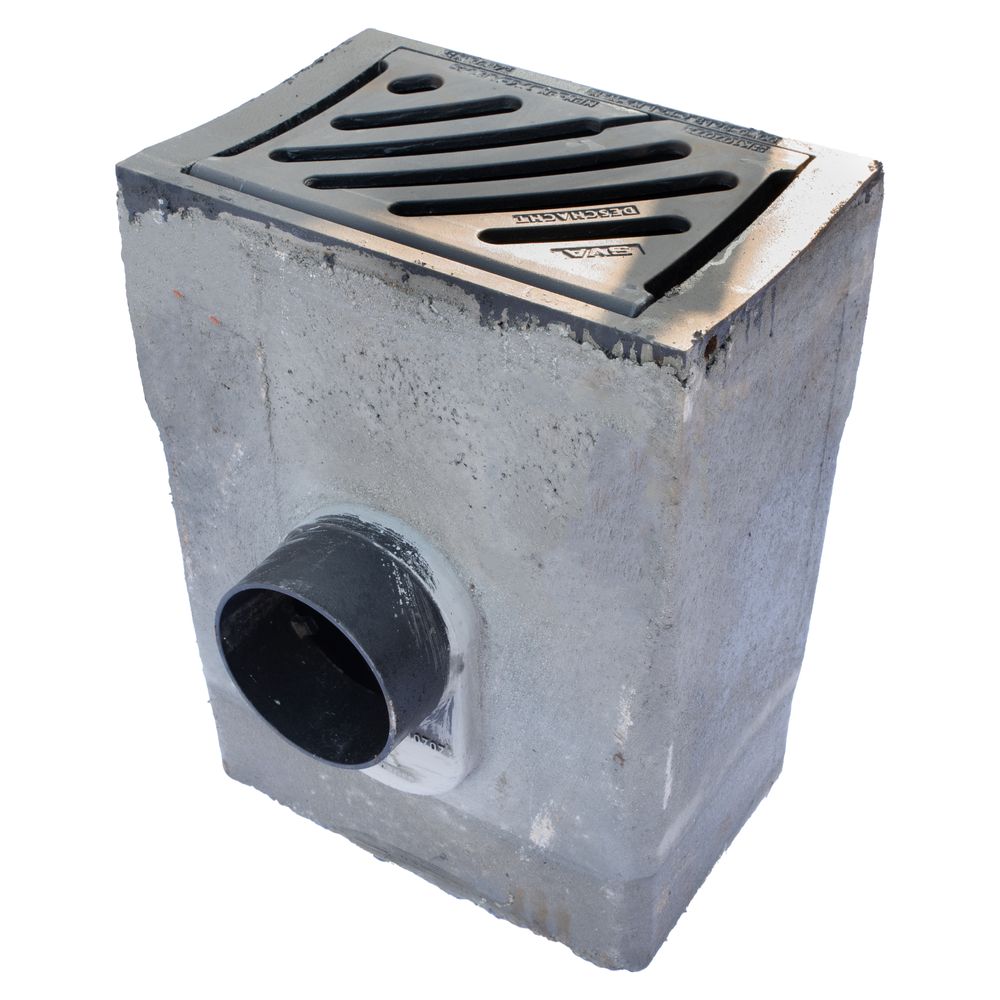

STREET GULLY / CONCRETE B125 450X300MM Ø160 / H600

Code	STRKOPBET1301
Code	STRKOPBET1301
Reference	40895
Unit	pieces
Product model	Street gully concrete
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Herstal Hoogstraten Oostakker Tielt Zedelgem
Description	One-piece street gully in concrete/cast iron, type S1300/60, oversize 450 × 300 mm, with a cast iron siphon rear outlet Ø160. Hinged cast iron slotted grating, cast-in concrete sump, outlet with odour trap. The street gully is suitable for traffic class B 125 kN in accordance with EN 124. KOMO certified. Full description
Documents	Technical data sheet

Availablility

One-piece street gully in concrete/cast iron, type S1300/60, oversize 450 × 300 mm, with a cast iron siphon rear outlet Ø160. Hinged cast iron slotted grating, cast-in concrete sump, outlet with odour trap. The street gully is suitable for traffic class B 125 kN in accordance with EN 124. KOMO certified.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓ Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

Technical specifications

(Everything you should know)

Product type	Street gully concrete
Width (mm)	300mm
Raw material	Concrete - cast iron
Certificate	Komo
Load class	B125
Shape	Rectangular

Height (mm)	600mm
Length (mm)	450mm
Connection diameter (mm)	160mm
Weight (kg)	123kg
Connection options (DN)	160

Product type	Street gully concrete
Width (mm)	300mm
Raw material	Concrete - cast iron
Certificate	Komo
Load class	B125
Shape	Rectangular
Height (mm)	600mm
Length (mm)	450mm
Connection diameter (mm)	160mm
Weight (kg)	123kg
Connection options (DN)	160
